Product Overview

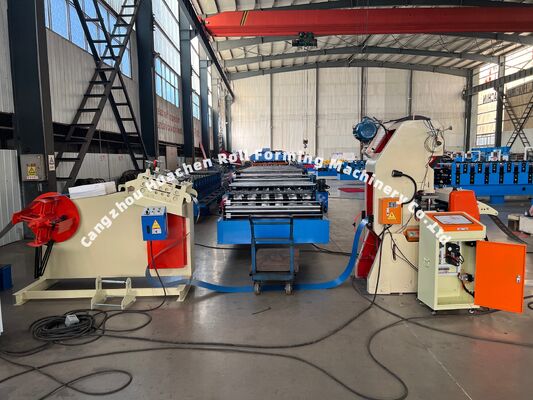

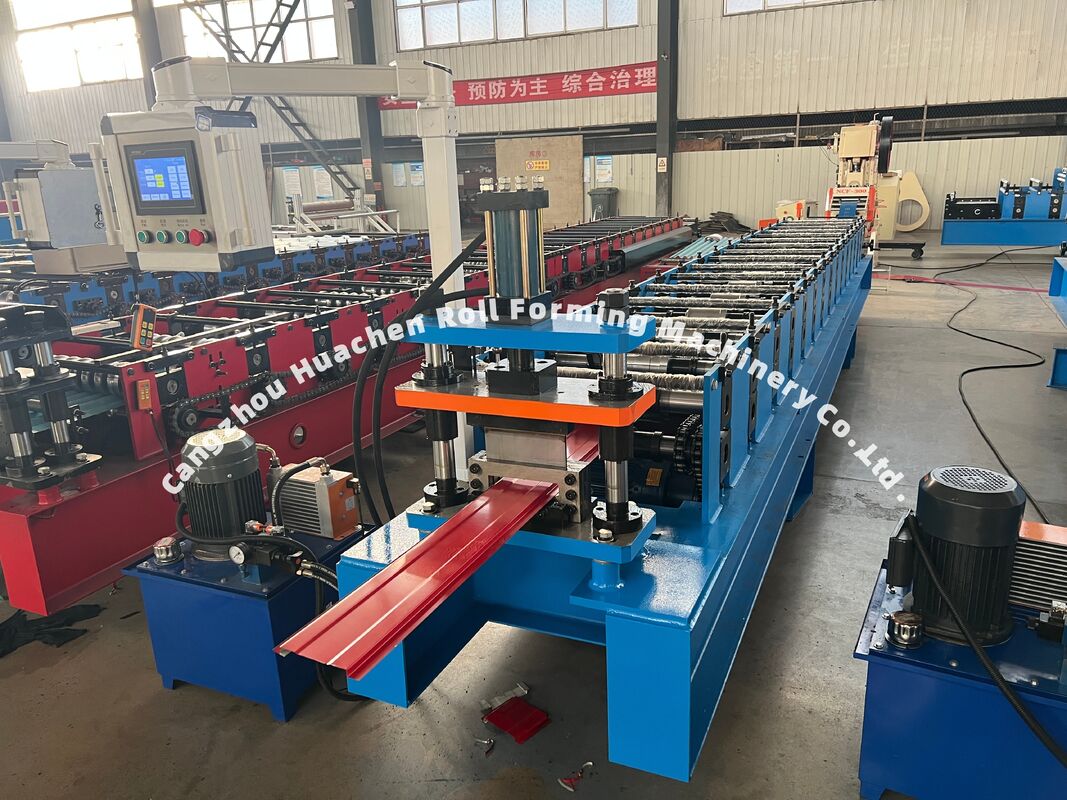

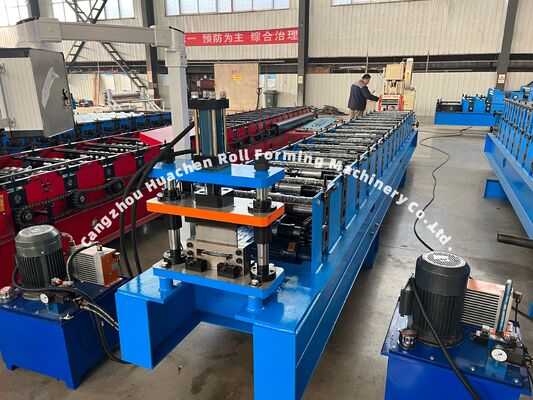

The Wall Panel Roll Forming Machine is engineered for precision manufacturing of high-quality wall panels used in modern construction. This versatile equipment produces both decorative and structural wall components with exceptional reliability and operational efficiency.

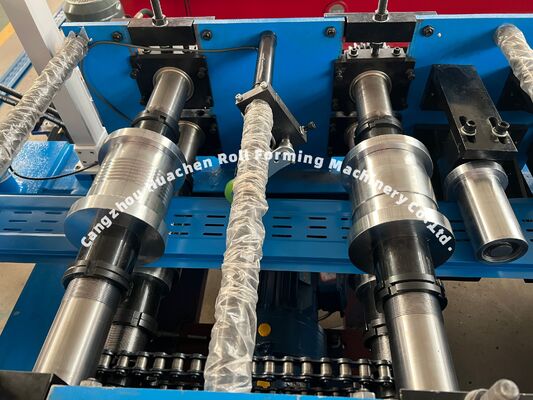

Constructed with 45# steel rollers for superior strength and wear resistance, the machine maintains precise shaping accuracy throughout extended operation. The robust 350 H beam frame provides exceptional stability, minimizing vibration and deformation during high-speed production.
Capable of processing GI and PPGI tiles with thickness ranging from 0.3mm to 0.6mm, this machine delivers consistent quality and finish. With production speeds of 15-20 meters per minute, it enables high-volume manufacturing while reducing material waste and improving cost-effectiveness.
Key Features
- Product Name: Wall Panel Roll Forming Machine
- Motor Power: 4+4KW for efficient operation
- Panel Thickness Range: 0.3-0.6mm suitable for various wall applications
- Machine Type: Roll Forming Machine designed for wall panel production
- Machine Frame: Robust 350 H Beam frame ensuring durability and stability
- Decoiler Type: Hydraulic/manual Decoiler for flexible material feeding
- High precision and reliable performance for wall siding applications
- Versatile design suitable as wall roll forming and wall siding roll forming machine
Technical Specifications
| Parameter |
Specification |
| Tile Type |
GI/PPGI |
| Machine Frame |
350 H Beam |
| Decoiler Type |
Hydraulic/manual Decoiler |
| Roller Material |
45# Steel |
| Cutting Method |
Hydraulic Cutting |
| Motor Power |
4+4KW |
| Panel Thickness |
0.3-0.6mm |
| Production Capacity |
15-20m/min |
| Shaft Material |
45# Steel |
| Machine Type |
Roll Forming Machine |
Applications
The HC Wall Panel Roll Forming Machine is ideal for construction and manufacturing industries requiring high-quality wall panels. Certified with CE standards, this machine efficiently produces hanging boards and panels for architectural and decorative applications.

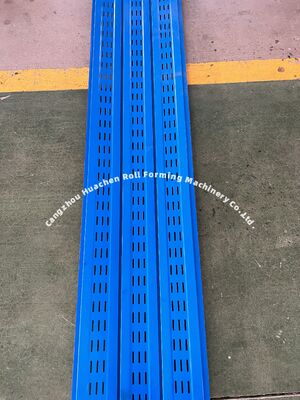

Applications include building facades, interior wall decoration, exterior cladding, residential, commercial, and industrial buildings. The machine supports large-scale production of standardized wall panels with excellent structural integrity and visual appeal.
Customization Services
Our HC-branded wall panel roll forming machine offers comprehensive customization services tailored to specific production requirements. With CE certification and robust construction using 45# steel components, we provide flexible solutions for various wall panel applications.
Minimum order quantity: 1 set. Supply capacity: 60 sets per month. Delivery time: approximately 30 days from order confirmation.
Support & Services
Comprehensive technical support including installation guidance, operational training, and maintenance instructions. Our experienced team provides troubleshooting, machine setup, and customization assistance through remote support and on-site service.
We offer regular maintenance packages, spare parts supply, software updates, and upgrades to ensure optimal machine performance throughout its lifecycle.
